8x3.75 Trailer 8" Wheel 5 lug on 4.5" bolt circle for 4.80-8 or 5.70-8

600207
Rating

Price is per wheel.

8 diameter by 3.75" width Trailer Wheel with 5 lugs on 4.5" bolt circle.

MPN: WH0051

$12.00
Quantity
In stock

Description

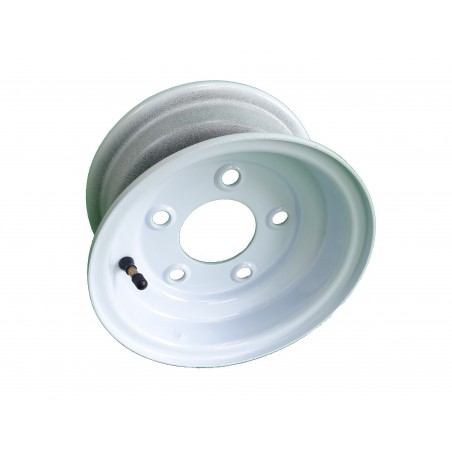

Price is per wheel. New 8" diameter white painted steel wheel. Size is 8" by 3.75". This wheel is used on small utility and boat trailers. The wheel is correct for 4.80-8 or 5.70-8 size tires. These have 5 bolt holes on a 4.5" bolt circle. The 5 on 4.5" pattern is the most common 5 lug pattern for factory made trailers using the 8" wheel. Measuring a 5 hole bolt circle is tricky because two bolt holes aren't directly across from each other on the circle. A trick to measuring 5 bolt wheels is measure between the centers of two side by side holes. On a 5 on 4.5" bolt circle it will measure exactly 2 5/8" from center to center of two side by side lug holes, see the picture. If you are attempting to measure bolt circle on a 5 hole wheel you would actually measure from the center of one hole straight across to where a hole WOULD be if located they were directly across and on the same circle. The center hole size is roughly 2 3/4" however the center hole does not have to be the exact same size as your hub. It just needs to be large enough to go over it so the wheel can seat flat against the hub. These trailer wheels are stud piloted, that is they center on the tapered face of the lug nuts or bolts when tightened not the center hole. Each wheel includes a new valve stem.

Product Details

600207
29 Items

Data sheet

Applications
Trailer

Reviews

No customer reviews for the moment.

Write your review

8x3.75 Trailer 8" Wheel 5 lug on 4.5" bolt circle for 4.80-8 or 5.70-8

8x3.75 Trailer 8" Wheel 5 lug on 4.5" bolt circle for 4.80-8 or 5.70-8

Price is per wheel.

8 diameter by 3.75" width Trailer Wheel with 5 lugs on 4.5" bolt circle.

MPN: WH0051
